Pitts Trailers has been in business since 1976, giving Nationwide Haul more than four-and-a-half decades of reasons to offer its equipment. The company combines its depth of experience with superior materials, state-of-the-art facilities, computer-aided design, and skilled craftsmanship.
Our selection of Pitts Trailers includes forestry, hydraulic tail, heavy haul, lowboy, and tag-along trailers and more. All the trailers from Pitts are designed to be dependable and rugged enough to haul what you need when you need it. The trailers are made to include the features you need, tough construction, and industry-leading prices.
Take a look at some of the Pitts Trailers equipment you can find at Nationwide Haul.
The Pitts LB55-DC Gooseneck Trailer has the following highlights:
110,000 pounds in 16 feet
Starting at 20,100lbs
Fabricated (4) I-beam
Hydraulic removable gooseneck
High-tensile-strength steel. T1-Steel
Grote Ultra Blue Sealed wiring harness
18-inch and 22-inch loaded deck height designs
PPG automotive-grade acrylic urethane
Overall 8'6" width and 51'8" length
Clear deck length of 25'
Deck height under full load of 22"
Rear bogie height of 41"
50-inch nominal loaded 5th wheel height
Grote high-count LED lights
Steel-shot-blasted priming
Standard 1½" apitong flooring
Standard 102" swing clearance
Triple reinforced bogie transition
(3) axle configuration-25,000 lbs nominal capacity per axle
Or consider the Pitts LB51-DC Gooseneck trailer with very similar features but the following differences:
102,000 pounds in 16 feet
Starting at 19,400lbs pounds
Standard 90" swing clearance
The below features are standard on all models:
Sealed wiring harness
Grote high-count LED lights
Steel-shot-blasted priming
The differences for the Pitts LB35-DC Gooseneck Trailer are:
70,000 pounds in 16 feet
Starting at 15,300lbs pounds
Standard 84" swing clearance
(2) axle configuration-25,000 lbs nominal capacity per axle

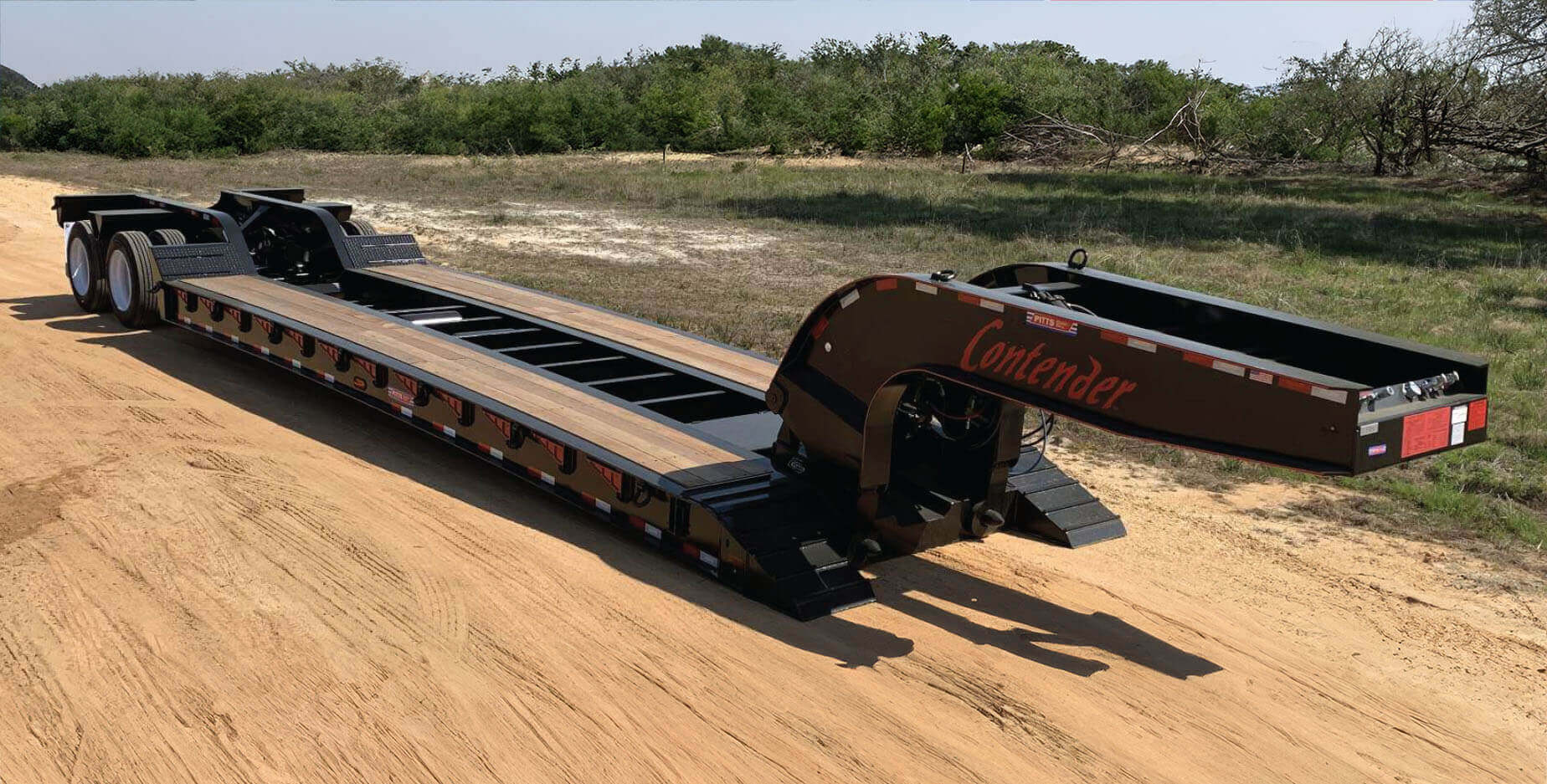

One of the very popular Lowboy FN trailers from Pitts Trailers you can find at Nationwide Haul is the Pitts LB35. You will notice some familiar features from the other Pitts Trailers already mentioned, such as:
Fabricated (4) I-beam
Fabricated (4) I-beam high-tensile-strength steel
Grote Ultra Blue sealed wiring harness
Grote high-count LED lights
Primed with steel shot-blasted
Painted with PPG automotive grade acrylic urethane
(2) axle configuration-22,500 lbs nominal capacity per axle
(8) Pair (16 total), bent D-ring
Option available for hydraulic - 96" x 36" - wood filled ramps
The Pitts LB35 Low Boy FN Trailer also has:
70,000 pounds in 16 feet
Starting at 13,500 pounds
Exposed beam neck with steeper incline from lower to upper deck
Another option is the Pitts LB35-CS Low Boy FN Trailer. It's nearly identical to the LB35, but with the following specs:
Starting at 17,900 pounds
Loaded deck height designs of 26, 33, and 38 inches
Stationary motor grader ramps for a more gradual transition from the lower to upper deck.
**The trailer above is also offered in 25- and 51-ton capacities**

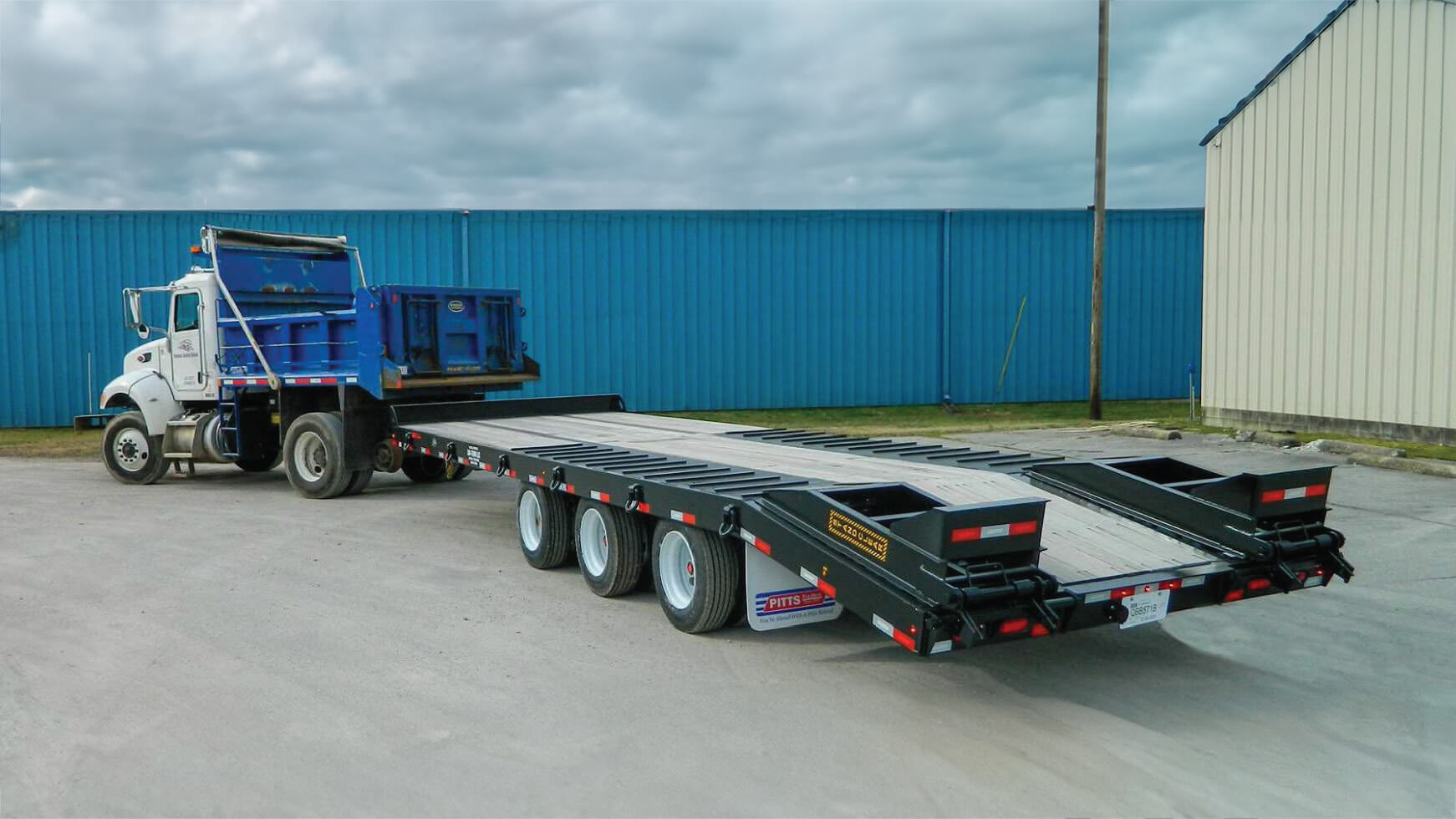

Nationwide Haul also carries Pitts Tag Along Trailers. Most of these feature:
Wide-flange mill roll I-beam with continuously formed tongue-no splice.
Grote Ultra Blue sealed wiring harness
Pierced main frame design
Grote high-count LED lights
Sealed wiring harness
Painted with PPG acrylic urethane
Adjustable Pintle Eye - 4 Position
Primed with shot-blasted steel
6' tongue with toolbox in the front. Lockable toolbox option available
Option available for hydraulic - 96" x 36" - wood filled ramps
The Pitts TA10 Tag Along Trailer can haul 20,000 pounds, equally distributed, and starts at 5,900lbs pounds. The TA12 Tag Along Trailer can haul 40,000 pounds, equally distributed, and starts at 6,250lbs.
The TA20 also can haul 40,000 pounds, equally distributed, but starts at 7,600lbs. The TA25 can haul 50,000 pounds equally distributed and starts at 10,850lbs.
