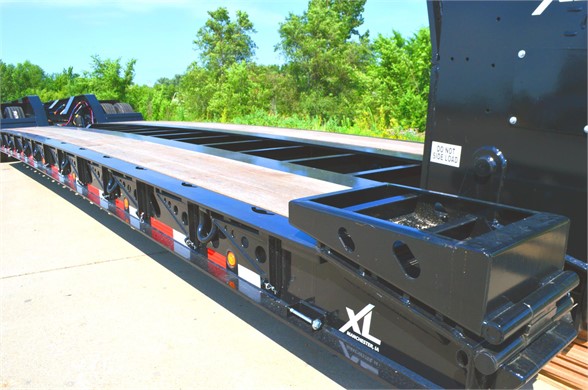

New 2024 XL SPECIALIZED 110 LOW PROFILE HDG - 18

Nationwide Haul - Macon, Georgia

Description

2024 XL Specialized Low-Profile HDG: 18-inch Deck Height **FET not Included** Locations In FL & GA CAPACITY • 110,000 lb in 12' GOOSENECK • 13' low-profile neck with relief cut-out • 5 position variable ride height • 51" 5th wheel height • 110" & 84" swing clearance • 16" & 42" king pin setting • Hydraulics run off of wet kit • Air operated lock w/ manual safety latch • Brackets for power unit • Work light MAIN DECK • 26' long • T-1 flange, 80k web • (4) 12" fully cambered i-beams • 18" loaded deck height • 6" ground clearance • 8" & 4" stubbed jr. I-beams on 12" alt. Centers • 31" front flip ramps • (7) bent d-rings per side • 1 3/8" apitong raised decking - open center • Toolbox in front • (4) flat-d-rings in toolbox • (13) chain drops per side • Swing out outriggers on 24" centers • Heavy duty flatback outriggers at front • Bucket well at rear, plate on bottom • (4) flat d-rings in bucket well • (2) flag holders • Front ramp upper flange reinforcement REAR BRIDGE • 14' long • Rear transition with 32Adeg slope • 41" loaded deck height • Open boom trough • Open wheels with bolsters dropped 4" • (2) flat d-rings on main beams at rear • (2) chain drops on each bolster • (2) flag holders • (2) stake pockets in tail channel for wide load sign • Frame reinforcement for booster OVERALL LENGTH & WIDTH • Overall length: 53' • Overall width: 102" SUSPENSION • 25,000 lb air ride • Raise and lower valve • Manual ride height control AXLES • (3) 25,000 lb nominal • 54 1/2" axle spacing • Air lift on 3rd axle • Hub pilot, outboard drums • 16 1/2" x 7" brakes • Auto slack adjusters • Limit chains on all axles • Spring brakes on 1 axle • Abs not required WHEELS & TIRES • 8.25 x 22.5 steel rims • 275/ 70r/ 22.5 h rated tires LIGHTING • D.O.T approved 12v sealed harness • Rubber mounted led lights • (1) mid-turn signal per side • (2) clearance lights per side • 7 pole electrical socket • 2 tail light package with aluminum cover THE NATIONWIDE HAUL EDGE a" We finance All Equipment! Even if you didn't buy from us! a" Free Trucking Insurance Quote & Policy review for all Customers a" DOT for Life - All equipment we sell gets a free DOT Inspection for lifetime a" Extended Warranty options on All Equipment a" GAP Insurance & Roadside Assistance is Available a" We accept all Trade proposals and pay top dollar! a" Free TCS Fuel Card (Save an average of 42 cents Per Gallon) a" Equipment lease & Rental options available on all inventory

Specifications
